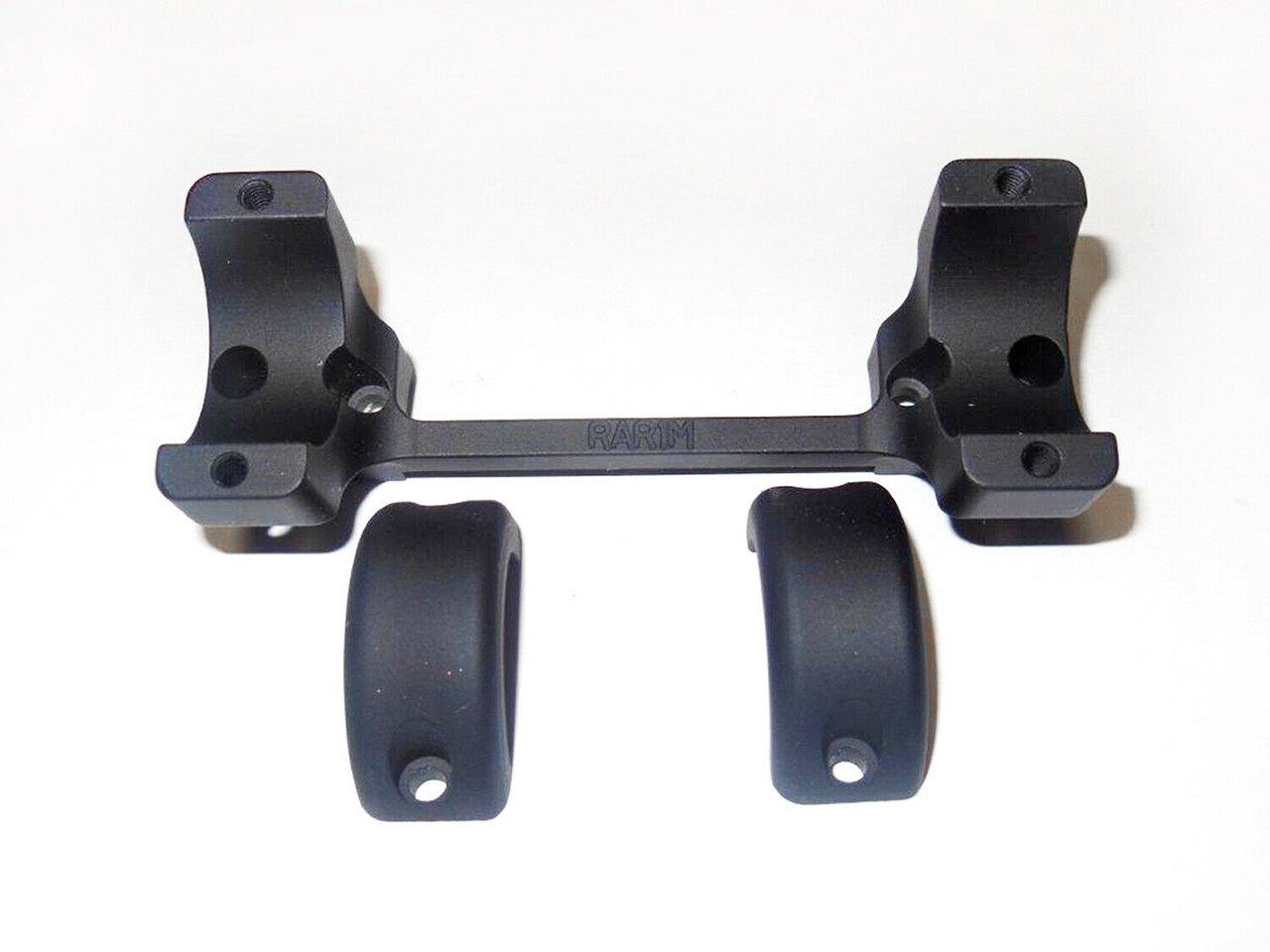

Picture for illustration purposes only

Mount fits both left and right hand firearms.

Base screws are 6-48 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Both screws use a 7/64″ Allen wrench.

Short action – Outside to outside of rings is 3.97″. Standard rings are .63″ wide and have 2 ring screws per ring.  4 Hole to hole spacing dimensions are .86″, 3.01″, .86″. Height of mounts from top of receiver to centerline of scope tube is –  low .92″, medium 1.05″, and high 1.17″.
