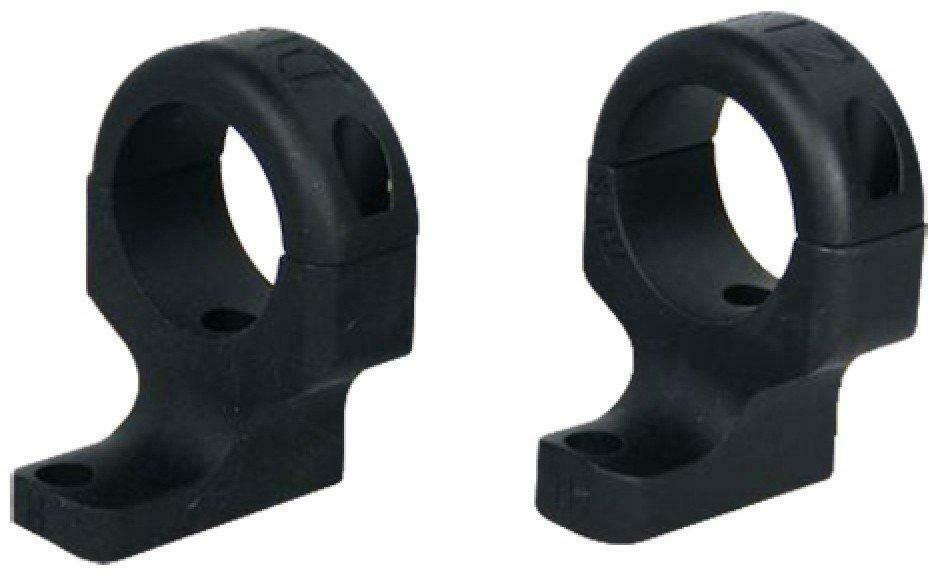

Picture for illustration purposes only

Fits Howa 1500, Mossberg 100ATR, 4X4, Patriot, MVP, Weatherby Vanguard, Remington 700,721,722,725 (fits all action lengths): Base screws are 6-48 X 1/4" long. Ring screws are 6-40 X 5/8"long. Both use a 7/64 Allen wrench. Hole spacing dimensions on front mount is .86" and on back mount it is .60". Both mounts are not the same part. Back mount is taller than front mount because receiver is lower on back end. Standard rings are .63" wide and Tactical rings are .80" wide. Standard rings have 2 screws per ring . Height of mounts from top of receiver to centerline of scope tube is – High 1.23"
